ALIGNMENT CORNER JOINTS
FUJI

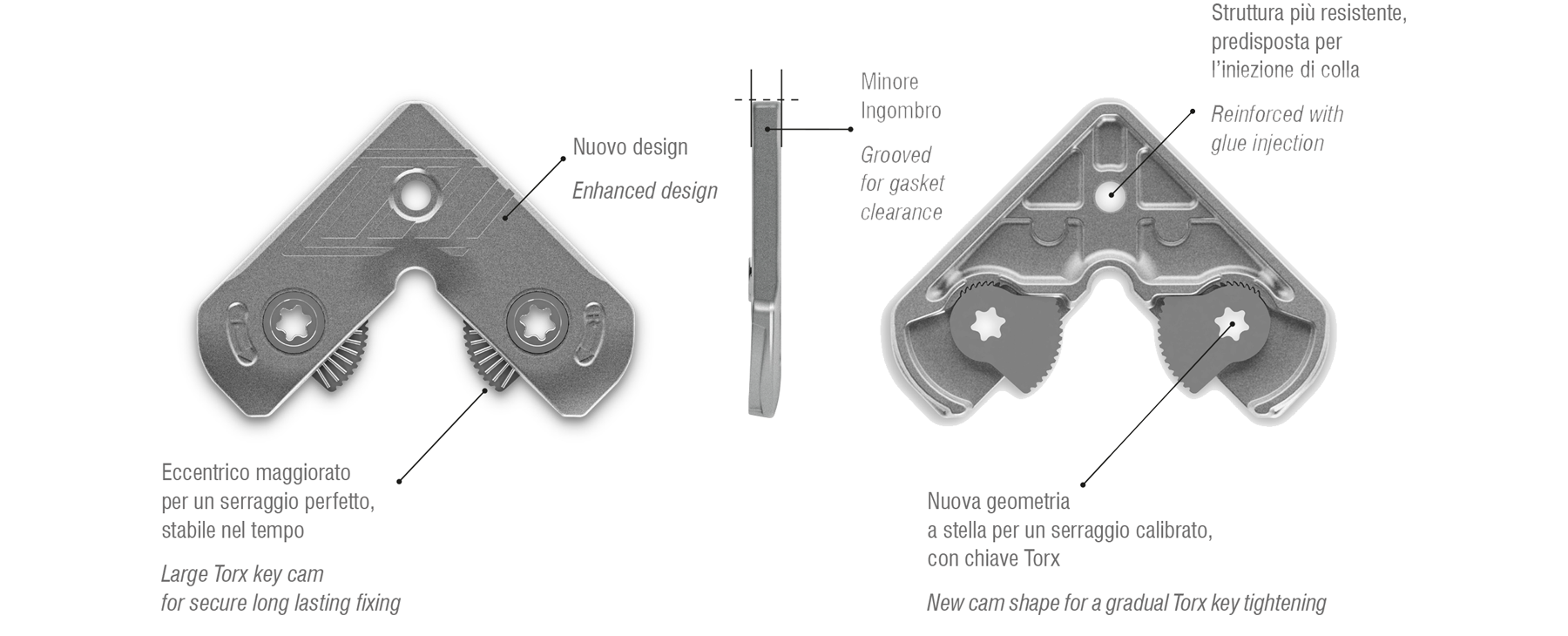

Die cast aluminum alignment corner joint, it is the only one that can close and align profiles flawlessly thanks to its two adjustable cams. Fixing achieved after the profile is assembled. No profile processing.
Montix anti-corrosion coating is included.
Tools needed: Allen or Torx wrench.
- Monticelli-Fuji-ENG.pdf
DOWNLOAD
| CODE | W | H | FEATURES | |
|---|---|---|---|---|
| 2000/250 | 4,80 | 17,40 |   M | Technical Sheet Profile Processing |
| 2001/250 | 6,00 | 26,50 |    S | Technical Sheet Profile Processing |
| 2002/250 | 6,00 | 26,50 | S | Technical Sheet Profile Processing |
| 2006/250 | 6,20 | 24,50 | S | Technical Sheet Profile Processing |
| 2007/250 | 7,10 | 15,20 | M | Technical Sheet Profile Processing |
| 2008/250 | 4,80 | 16,20 | M | Technical Sheet Profile Processing |
| 2009/250 | 4,80 | 13,30 |  M | |
| 2013/250 | 4,50 | 11,20 | M | Technical Sheet Profile Processing |
| 2016/250 | 5,80 | 24,50 | S | Technical Sheet Profile Processing |
| 2018/250 | 5,60 | 17,50 | M | Technical Sheet Profile Processing |
| 2019/250 | 4,10 | 15,80 | M | Technical Sheet Profile Processing |
| 2020/250 | 4,00 | 12,00 | M | |
| 2021/250 | 3,90 | 15,80 | M | Technical Sheet Profile Processing |
| 2026/250 | 4,90 | 23,40 | M | Technical Sheet Profile Processing |
| 2028/250 | 4,00 | 36,70 | M | |
| 2029/250 | 7,80 | 15,40 | M | |
| 2200/250 | 4,30 | 17,00 | M |
